Correcting and Modifying Billing Interface Transaction Data
This topic discusses how to access Billing Interface components and modify or correct errors to the interface data.
To access a Billing Interface component, select possible search parameters:
Field or Control |
Description |
|---|---|
Primary Search Criteria |
Interface ID. Interface Line Number. Transaction Type. Transaction Type Sequence. |
Alternate Search Criteria |
Error Status. Business Unit. Bill To Customer ID. Bill Type. Bill Source. |
You can search by any combination of this information. If you do not enter search parameters, the system displays every rejected line from that process instance.
When the search is complete, the page displays the following information:
Field or Control |
Description |
|---|---|
Interface ID |
A unique number for each batch of bill lines assigned by the process that populates the staging area. |
Interface Line Number |
A unique identifier that you use when you provide multiple charge lines. |
Transaction Type |
Indicates the type of information that the bill contains. Values are:
|
Transaction Type Sequence |
A unique identifier that you use when you provide multiple accounting entries, notes or comments, or discounts or surcharges for a specific charge line. |

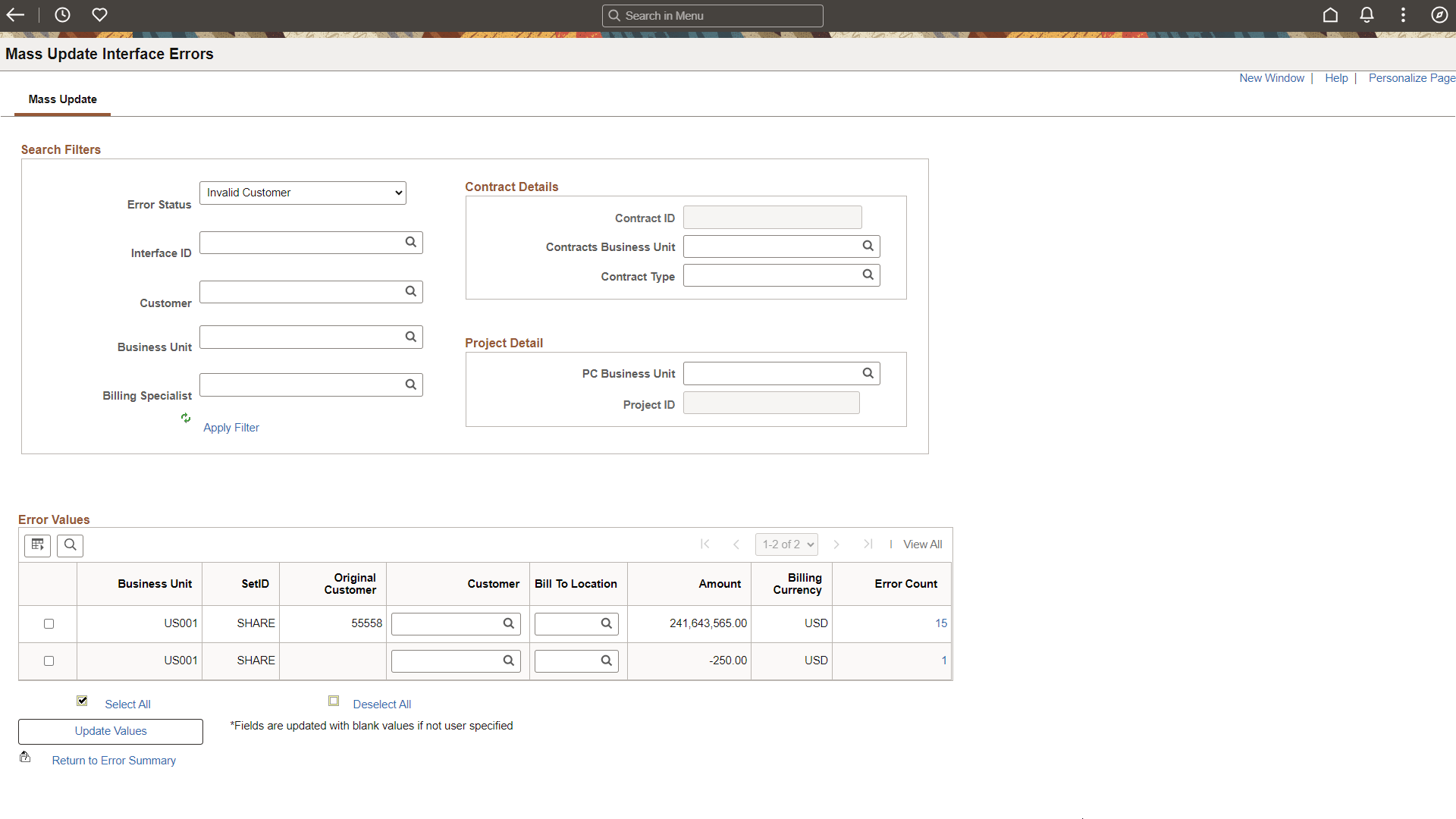

Mass correction is not possible for all the interface errors. Some errors need to be corrected using the single line correction or by making a change to the source.
This table lists the interface errors and indicates which errors can be corrected using mass update:
|
Error Code and Status |
Explanation |
Can be Corrected using Mass Update |
|---|---|---|
|
0010 - Invalid Transaction Type |
Transaction type must be LINE, AE, AHDR, TAX, NOTE, EXSD, DS, or DDS. |
|
|
0015 - Invalid Entry Event |
The provided entry event is invalid. |
Y |
|
0020 - Too Many Charge Lines |
There is more than one LINE transaction for a unique combination of interface ID (INTFC_ID) and interface line number (INTFC_LINE_NUM). |
|
|
0030 - No Charge Line for Activity |
Accounting entries (AE), notes (NOTE), discounts/surcharges (DS), or deferred accounting for discount/surcharge (DDS) transactions exist that do not belong to a bill line charge (LINE) transaction. |
|
|
0040 - Invalid Business Unit |
The provided business unit is invalid. |
Y |
|
0045 - VAT Information for Non-VAT Business Unit |
The Billing Interface encountered unexpected value-added tax (VAT) information for a non-VAT business unit. Ensure that VAT_APPLICABILITY and TAX_CD_VAT have no values in non-VAT business unit transactions. |
|
|
0050 - Invalid Bill Type |
The provided bill type is invalid. |
Y |
|
0060 - Invalid Customer |
The provided customer is invalid. |
Y |
|
0070 - Invalid Bill to Address |
The provided bill to address is invalid. |
Y |
|
0080 - Invalid Bill to Contact |
The provided bill to contact is invalid. |
Y |
|
0090 - Invalid Bill Source |
The provided bill source is invalid. |
Y |
|
0100 - Invalid Bill Cycle |
The provided bill cycle is invalid. |
Y |
|
0101 - Invalid Billing Specialist |
The provided billing specialist is invalid. |
Y |
|
0102 - Invalid Billing Authority |
The provided billing authority is invalid. |
Y |
|
0103 - Invalid Billing Inquiry Phone |
The provided billing inquiry phone number is invalid. |
Y |
|
0110 - Invalid Payment Terms |
The provided payment terms is invalid. |
Y |
|
0111 - PYCV line contains a tax code |
Payment with Corporate Voucher lines cannot reference a tax code. |
|
|
0113 - Sales Tax/VAT is Applicable |
Tax rate code or sales tax/VAT detail record is missing. |
|
|
0114 - Invalid India Transaction |
Transaction with India taxation did not originate from PeopleSoft Order Management, PeopleSoft Contracts, Projects to Billing, BI Batch, Asset to Billing, Inventory to BI, or Load Data from Spreadsheet. PeopleSoft Billing processes India tax transactions only from these sources. |
|
|
0115 - Invalid Payment Method |
The provided payment method is invalid. |
Y |
|
0116 - GST Applicability not Enabled |
GST Applicability not enabled. Blank sales tax flag (STX_APPL_FLG) will cause this error |
|
|
0119 - Missing Tax Parameters |
Missing tax rate code. |
|
|
0120 - Invalid Tax Code |
The provided tax code is invalid. |
|
|
0121 - GST not Applicable |
GST tax applicability flag (STX_APPL_FLG) is not set to Y (yes). |
|
|
0122 - Missing required Tax Parameters |
Either a ship to customer or ship to location, or both, are not provided. These fields are required when third-party tax software is active for the Billing business unit. |
|
|
0125 - Invalid Ship From Country |
The provided ship from country is invalid. |
Y |
|
0126 - Invalid Ship To Country |
The provided ship to country is invalid. |
Y |
|
0127 - Invalid VAT Tax Code |
The provided VAT code is invalid. |
Y |
|
0128 - Invalid VAT Applicability |
The provided VAT applicability is invalid. |
Y |
|
0129 - Invalid VAT Transaction Type |
The provided VAT transaction type is invalid. |
Y |
|
0130 - Invalid Unit of Measure |
The provided unit of measure is invalid. |
Y |
|
0140 - Invalid Order Accept Location |
The specified order-acceptance location is not valid in the Location table. |
Y |
|
0150 - Invalid Order Origin Location |
The specified order-origin location is not valid in the Location table. |
Y |
|
0160 - Invalid Ship From Location |
The specified ship from location is not valid in the Location table. |
Y |
|
0170 - Invalid Souce Reference |
Both source reference and source type must be provided. One cannot be blank when the other one is assigned a value. |
|
|
0200 - Invalid Standard Note Code |
The provided standard note code is invalid. |
Y |
|
0210 - No Note Text Provided |
No note text exists for NOTE transaction type. This arises when either no note code or note text are provided for a NOTE transaction, or when no note text appears by default from the provided note code. |
|
|
0220 - Missing or invalid line type |
Either no line type was provided or an invalid line type was provided. Line type is required. |
|
|
0230 - Invalid use of SubCustomer |
Either the system or the customer is not set up to accept this kind of subcustomer information. |
|
|
0232 - Invalid Consol Customer ID |
The consolidation customer (CONSOL_CUST_ID, CONSOL_SETID) that was passed is not set up as a consolidation customer. |
|
|
0233 - Missing or Invalid Billing Currency |
The billing transaction currency is invalid or missing. |
Y |
|
0234 - Invalid Currency Rate Type |
The provided currency rate type is invalid. |
Y |
|
0235 - Missing Rate Mult/Rate Div |
When the rate source is user defined, the Rate Mult and Rate Div fields are required. |
Y |
|
0240 - Invalid Target Invoice Status |
The specified target invoice cannot have a bill status of INV, CAN, FNL, TMR, or TMP. |
|
|
0243 - Invalid Target Invoice Type |
You cannot add lines to the specified target invoice. A target invoice cannot be a credit or a rebill invoice. |
|
|
0244 - Different Customer or Currency for Targets |
Transactions that reference the same target invoice must also reference the same bill to customer and billing currency. |
|
|
0245 - Target Invoice Already Exists |
You cannot set or change the pay status of existing invoices to Fully Paid. |
|
|
0246 - Target Invoice Fully Paid |
You cannot add lines to an existing fully-paid invoice. |
|
|
0247 - Invalid Fully Paid Transaction |
It is not allowed to send fully paid transactions from any source other than Order Management. |
|
|
0300 - Disc/Sur Amt & Pct = 0 |
The discount/surcharge amount and discount/surcharge percentage are both 0. This occurs when either no amount or percentage is provided for a DS transaction or no amount or percentage appears by default from the provided discount/surcharge ID. |
|
|
0310 - Missing Discount/Surcharge ID |
No discount/surcharge ID was provided on the DS or DDS line. A discount/surcharge ID is required on DS or DDS lines. |
|
|
0350 - Missing tax details |
Required tax details are missing. |
|
|
0351 - Invalid Tax Detail transaction |
When all tax details are present, bill header data must also be present. |
|
|
0355 - Tax details <> Line Tax Amt |
The sum of the amounts in the tax detail records does not equal the line tax amount. |
|
|
0386 - CA/BI Currency Mismatch (Contracts/Billing currency mismatch) |
The selected currency code for this bill line does not match the currency code on the selected bill plan ID for PeopleSoft Contracts. |
|
|
0400 - No Bill By for Line |
After defaulting bill by from customer, bill source, bill type, and business unit, no bill by identifier exists for grouping the interface activity into the bill data structure. |
|
|
0411 - Missing Bill By Field(s) Value |
One or more bill by fields in the bill by ID are missing values. |
Y |
|
0412 - Missing Required VAT Data |
One or more required VAT-related fields are missing values. Ensure that you directly populate these fields (or populate the fields that these fields are derived from) in INTFC_BI:
|
|
|
0413 - PVN Lvl Missing Bill By Field |
To process invoices from contracts that require a Public Voucher Number to be generated by the Billing Interface, certain fields must be included in the Bill By.
|
|
|
0510 - No Accounting Entries for line |
Required accounting entries for a bill line do not exist. |
|
|
0511 - Invalid Accounting Entries |
A charge line may not have a revenue (RR) and an contract asset AE unless the bill is an installment bill. |
|
|
0513 - More than one IP entry for line |
More than one interunit payable (IP) type line exists for the bill line. Only one is permitted. |
|
|
0514 - More than one AR entry for line |
There is more than one AR type line for the bill line. Only one is permitted. |
|
|
0515 - More than one IE entry for line |
More than one interunit expense (IE) type line exists for the bill. Only one is permitted. |
|
|
0516 - No deferred entry for line |
The revenue recognition basis specifies that the line is potentially subject to contract liability recognition, but no deferred accounting entries exist. This also applies to DS lines with no deferred accounting entries. |
|
|
0517 - CA not allowed for non INS |
Unbilled accounting entries are not allowed from external, non-PeopleSoft integrations. The features for unbilled accounting entries are used exclusively with installment bills (which you can enter only online) and bills from PeopleSoft Contracts and Project Costing. |
|
|
0520 - Accounting <> 100% or <> 0% or Gross Ext |
The sum of accounting entry amounts for a particular charge line does not equal the gross extended amount for that line, or the sum of the accounting entry percentages for a particular charge line does not equal 100 percent or 0 percent. |
|
|
0523 - Unbilled <> 100% or <> 0% or Gross Ext |
For a charge line with unbilled accounting entries, the sum of accounting entry amounts for a particular charge line does not equal the gross extended amount for that line, or the sum of the accounting entry percentages for a particular charge line does not equal 100 percent or 0 percent. |
|
|
0525 - Deferred <> 100% or <> 0% or Gross Ext |
The sum of contract liability accounting entry amounts for a particular charge line does not equal the gross extended amount for that line, or the sum of the accounting entry percentages for a particular charge line does not equal 100 percent or 0 percent. |
|
|
0526 - Inherited ChartField(s) varies |
Inherited ChartField values for a bill line's revenue distribution varies. This option is not supported. |
|
|
0530 - Invalid Distribution ID |
The provided distribution code on an RR type AE or DS transaction is invalid. |
|
|
0532 - Invalid AR Distribution ID |
The provided AR distribution code on a charge line transaction is invalid. |
|
|
0534 - Invalid Deferred Dist ID |
The provided distribution code on a DDS AE is invalid. |
|
|
0540 - Invalid Account |
The account on an AE, DS entry, or DDS entry is invalid. |
|
|
0542 - Invalid AltAccount |
Either the provided alternate account is invalid or the alternate accounting option is not selected. |
|
|
0544 - No AltAccount |
The alternate accounting option is selected, but no alternate account was provided. |
|
|
0550 - Invalid Department |
The department on an AE, DS entry, or DDS entry is invalid. |
|
|
0557 - Invalid ChartField value |
The provided ChartField value is invalid. This is a generic message for fully configurable ChartFields. Check the message log for the Billing Interface process instance to see which ChartField value is invalid. |
|
|
0560 - Invalid Project ID |
The project on an AE, DS entry, or DDS entry is invalid. |
|
|
0580 - Invalid Statistics Code |
The statistics code on an AE, DS entry, or DDS entry (DDS) is invalid. |
|
|
0584 - Invalid Affiliate |
The affiliate value provided on AE, DS, or DDS transactions is invalid. |
|
|
0590 - No Dst ID or Account |
No account exists for an AE or DS. |
|
|
0591 - No AR Dst ID or Account |
No AR distribution code or account exists for a Header AR AE in the INTFC_BI_HDR table. |
|
|
0595 - No Deferred DST ID or Acct |
No deferred account exists for a DDS. |
|
|
0597 - Invalid Account Entry Type |
The account entry type on an AE is invalid. |
|
|
0599 - Error in INTFC_BI_AEDS row |
An error exists in the INTFC_BI_AEDS row. |
|
|
0610 - Missing Open Item Key from open item account |
The line references an open item account, but does not provide the corresponding open item key. |
|
|
0650 - Invalid InterUnit Pair |
The From and To GL business unit pair is not a valid pair for this interunit and intraunit bill line. |
|
|
0653 - Cus Not Setup for IU Processing |
Interunit information was passed, but the customer is not set up as an interunit customer. |
|
|
0655 - IU Flag=Y but BU To is Null |
After applying defaults, the Business Unit To field is blank. This field is required for interunit bills. |
|
|
0660 - IU IP Sent but Gen Vchr Flg=Y |
An AE for interunit payables (IP) cannot be passed when the Generate AP Voucher flag is set on the InterUnit Control Definition table. |
|
|
0662 - BusUnit To Must Match Adj Bill |
The to business unit must be the same as the to business unit on the invoice that is being adjusted. |
|
|
0700 - Invalid Adjustment Trans Type |
The adjustment transaction type is invalid. The type must be CRALL, RBALL, CRLIN, RBLIN, or NTLIN. |
|
|
0710 - Invalid Invoice to Adjust |
The invoice that is to be adjusted must have been invoiced (bill status INV) already and must not be a consolidated invoice. |
|
|
0720 - Invalid Line Seq to Adjust |
The line sequence to be adjusted is invalid. It does not exist. |
|
|
0730 - Trans Type Must be Line |
Line adjustment must have a transaction type of LINE. |
|
|
0740 - Multiple Adj Not Allowed-CRALL |
An invoice cannot be adjusted more than once in the interface batch. |
|
|
0741 - Multiple Adj Not Allowed-RBALL |
An invoice cannot be adjusted more than once in the interface batch. |
|
|
0742 - Multiple Adj Not Allowed-CRLIN |
An invoice cannot be adjusted more than once in the interface batch. |
|
|
0743 - Multiple Adj Not Allowed-RBLIN |
An invoice cannot be adjusted multiple times in the interface batch. |
|
|
0744 - Multiple Adj Not Allowed-NTLIN |
An invoice cannot be adjusted multiple times in the interface batch. |
|
|
0750 - Must Be Latest Adj in Chain |
The invoice or line to be adjusted must not have been adjusted already. |
|
|
0755 - Prior Adj at Different Level |
The invoice or line to be adjusted cannot have prior adjustments that were made at a different level. That is, if prior adjustments were made at the line level, it is not valid to then make them at the header level. |
|
|
0760 - Invalid Adj Delta Action |
The adjustment delta action for the rebill transaction is invalid. Valid values are ADD, DEL, and RPL. |
|
|
0770 - Currency Must Match Adj Bill |
The currency of the adjustment must be the same as the invoice that is being adjusted. |
|
|
0780 - Trans Type Must be AHDR |
Adjustment transactions of type CRALL must have a transaction type of ADHR. |
|
|
0785 - No Adj Trans Type for AHDR |
Transaction types of AHDR must have an adjustment transaction type of CRALL or RBALL. |
|
|
0790 - No Assoc Cr Header for Rebill |
An adjustment transaction type of RBALL must be accompanied by an adjustment transaction type of CRALL for the same invoice. |
|
|
0791 - No Assoc Cr Line for Rebill |
An adjustment transaction type of RBLIN must be accompanied by an adjustment transaction type of CRLIN for the same invoice. |
|
|
0795 - No Adjust Header for Line |
Rebill delta lines must be accompanied by an associated RBALL line. |
|
|
0799 - Adjustment Err by Association |
This adjustment transaction line is associated with another line that contained an error. There may be nothing wrong with this particular line, but when an error is found in one adjustment line, all related adjustment lines are marked with an error. |
|
|
0800 - Target Invc Err by Association |
This target invoice transaction line is associated with another line that contained an error. There may be nothing wrong with this particular line, but when an error is found in one target invoice line, all related target invoice lines are marked with an error. |
|
|
0801 - Invalid Statistic Account |
The statistical account provided is invalid. |
|
|
0802 - Invalid Account |
A statistical account that is provided for nonstatistical accounting entry line. |
|
|
0803 - No Statistic Code or Amount |
For nonstatistical accounting entry line:
|
|
|
0804 - Invalid Account; not monetary |
For statistical accounting entry lines, an account may not be a monetary account. |
|
|
0805 - No Statistic Amount |
No statistic amount was provided. |
|
|
0810 - No Matching Record found |
For each record in the INTFC_BI_HDR table, an associated record in the INTFC_BI table must exist. |
|
|
0811 - Invalid Transaction Type |
The header transaction type that is provided for a record in INTFC_BI_HDR table is invalid. |
|
|
0813 - No Paid Amount Provided |
A paid reference is present, but no paid amount is provided. |
|
|
0899 - Error in INTFC_BI_HDR row |
An error exists in the INTFC_BI_HDR row. |
|
|
0901 - Acceptgiro IVC Form Invalid |
Acceptgiro invoices must use the portrait (P) format. |
Y |
|
0902 - Acceptgiro Bank CD Invalid |
The bank code must be 007 or 008, which corresponds to the valid Dutch banking institutions that can receive acceptgiro payments. |
|
|
0903 - Acceptgiro BNK Act Key Invalid |
The bank account must use a valid acceptgiro bank code. |
|
|
0904 - Cons. SetID, CustID not blank |
Those invoices that require acceptgiro processing are not allowed to have a consolidation SETID and customer ID. |
|
Page Name |
Definition Name |
Usage |
|---|---|---|
|
INTFC_BI |
Correct errors from the Billing Interface process. |
|
|
INTFC_BI2 |
INTFC_BI2 |
Display data for interface transactions in the INTFC_BI2 table. |
|
INTFC_TAX |
INTFC_TAX |
Display data for interface transactions in the INTFC_TAX table. |
|
INTFC_BI_NOTE |
INTFC_BI_NOTE |
Display data for interface transactions in the INTFC_BI_NOTE table. |
|
INTFC_BI_HDR |
INTFC_BI_HDR |
Display data for interface transactions in the INTFC_BI_HDR table. |
|
INTFC_BI_EXSD |
INTFC_BI_EXSD |
Display data for interface transactions in the INTFC_BI_EXSD table. |
|
INTFC_BI_AEDS |
INTFC_BI_AEDS |
Display data for interface transactions in the INTFC_BI_AEDS table. |
|
BI_MC_INTFC_ERR |
Update interface errors for multiple billing lines. |
|
|
BI_MD_INTFC_ERR |
Delete the entire interface ID for bills. |
To verify data integrity, the Billing Interface process validates the data in the interface staging area.
If the Billing Interface process finds an error, it marks the LOAD_STATUS_BI column for all related rows as ERR (error). The Billing Interface process also marks the ERROR_STATUS_BI column with a more specific error condition.
A log file is created for all Billing Interface errors. Use the Correct Interface Errors Page to modify the Billing interface transaction data.
To view all Billing Interface errors from a Billing Interface process run:
From the Process Monitor page, access the Message Log page.
Search for the message text, "Please refer to the log file for interface errors."
If you see this text, then errors exist.
If you do not see this text, then errors do not exist.
Access the Process Details page and select the "ViewLog/Trace" link.
Select the "Interface_Errors_Log_File_xxx.csv" link to open the .csv file.

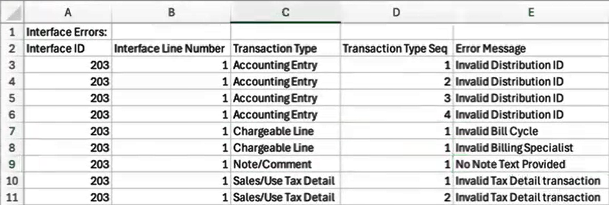

Example of Interface Errors Log File
Use the Correct Interface Errors page (INTFC_BI) to correct errors from the Billing Interface process.
Navigation:
Locate the line that displays a Load Status of ERR and a description of the error. If a line displays the Load Status of ERR and no error code or description, then the line is related to another line containing errors and may not contain errors itself. Go through all other tabs presented until you locate the actual code or description. Review the line and take the appropriate action necessary to correct the error.
Field or Control |
Description |
|---|---|
|
Click the Delete button to delete the record and all of the associated records in the interface extension tables. |
LoadStatus |
Represents the transaction load status, the ERR status (if applicable), and the error status description. If the interface has not processed the data or the data is not in error, the system does not populate error status or error status descriptions. |
Invoice number |
If the system has not successfully processed the interface activity, then the invoice number and sequence number are not populated. |
Note: You can correct information in any of the six interface tables. For example, if the error message reads "Invalid Customer," review the appropriate Billing Interface page and enter a valid customer ID in the Customer field.
Use the Mass Update Interface Errors page (BI_MC_INTFC_ERR) to update interface errors for multiple billing lines.
The default view is an error summary page with all errors statuses across all interface IDs. You can change the filter criteria based on your requirements.
Navigation:
This example illustrates the fields and controls on the Mass Update Interface Errors page. You can find definitions for the fields and controls later on this page.
Search Filters Section
|
Field or Control |
Description |
|---|---|
|
Error Status |
Select an error status found in the interface table. |
|
Interface ID |
Select an ID to search for errors by Interface ID. |
|
Business Unit |
Select a business unit to search for errors by BU. |
|
Customer |
Select a customer to search for errors by customer. The search is across all Set IDs and business units. |
|
Billing Specialist |
Select a billing specialist. You need to specify the business unit to search the errors by billing specialist. |
|
Contract Details |
User can search by Contract ID within a Contract BU or by Contract Type. The search can be performed only if Contracts is installed. |
|
Project Detail |
User can search by Project within a PC Business Unit. The search can be performed only if Projects is installed. |
Error Values Section
Use the Error Values grid to update the values. Click the Error Count link on the Mass Update page to view the Error Values grid.
|
Field or Control |
Description |
|---|---|
|
Update Values |
Click the Update Values button to update the Billing lines by entering the correct value. |
Use the Delete Pending Transactions page (BI_MD_INTFC_ERR) for deleting the entire interface ID for bills.
The Interface IDs are displayed on the Delete Pending Transactions page provided:
The interface lines have a system source as either BBI or blank. The interface IDs with lines having an internal interface source (Contracts, Inventory, Projects, Order Management, Asset Management) as the system source are not displayed.
None of the interface lines have a load status of ERR, UPD or DON. Interface IDs with pending or unprocessed lines are displayed.
Navigation:

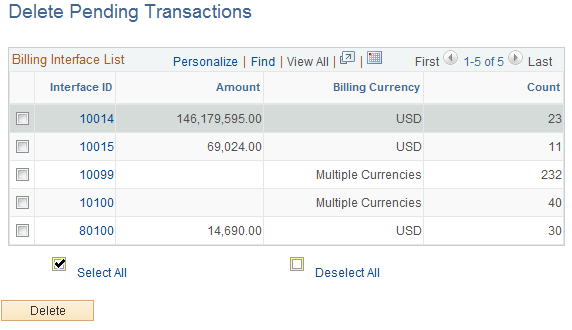

This example illustrates the fields and controls on the Delete Pending Transactions page.
Interfaces with multiple currencies appear as a single line.
