Viewing OBIEE Report Details

Use the Report Details pages to view information about OBIEE reports.

Access the Report Detail page. (Select PeopleTools > Portal > OBIEE Setup > View OBIEE Report Details.)

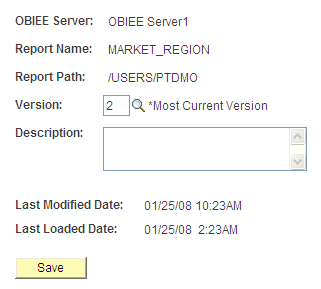

This example illustrates the fields and controls on the Report Detail page. You can find definitions for the fields and controls later on this page.

 Report details

Field or Control

Description

Version

Click the prompt to select the version of the OBIEE report to view.

Note: Each time you load the same report from the OBIEE server into the PeopleSoft application—regardless of whether the report has changed since last being loaded— the report version number increases by 1.

Access the Report Expression page. (Select the Report Expression tab.)

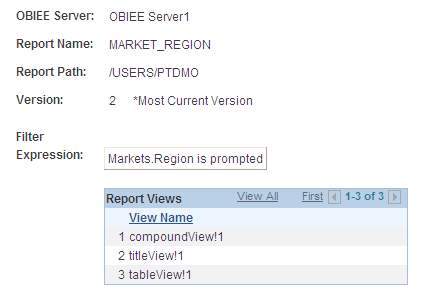

This example illustrates the fields and controls on the Report Expression page. You can find definitions for the fields and controls later on this page.

 OBIEE filter expression

Field or Control

Description

Filter Expression

This display-only field indicates whether the OBIEE report has embedded filters. The is prompted filter indicates that the preceding field—in this case Markets.Region—is context-sensitive to the target page on the PeopleSoft application.

View Name

This display-only field indicates the types of views created by the OBIEE report builder as stored on the OBIEE server.

See Oracle Business Intelligence documentation for explanations of the available types of views.

Access the Report References page. (Select the Report References tab.)

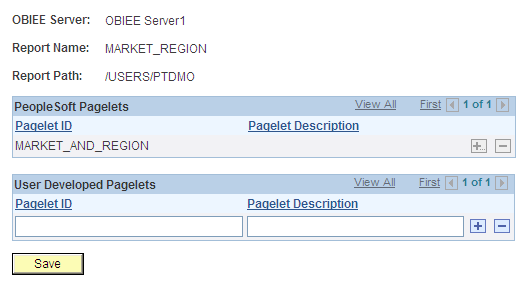

This example illustrates the fields and controls on the Report References page.

 OBIEE report references page

Field or Control

Description

PeopleSoft Pagelet ID

This value is supplied by default from the PTPPB_PAGELET_ID content reference attribute value that you enter on the pagelet Content Ref Administration page.

User Developed Pagelet ID

Enter the pagelet ID of any user-developed pagelets that you want to track. This field is informational only and has no validation behind it.

Access the Xml Definition page. (Select the Xml Definition tab.)

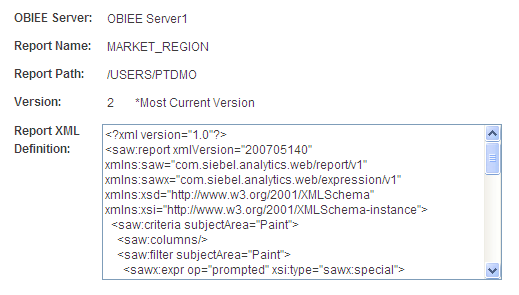

This example illustrates an XML report definition.

 OBIEE - XML report definition

Field or Control

Description

Report XML Definition

This field displays the XML tags and embedded data for the version of the report as it is currently loaded. Move the cursor inside the field and press Ctrl + A to select the text in its entirety.
