Managing OBIEE Dashboards

Use the Manage Dashboard page to create and publish the definition for an OBIEE dashboard.

Navigation:

PeopleTools > Portal > OBIEE Setup > Manage OBIEE Dashboards

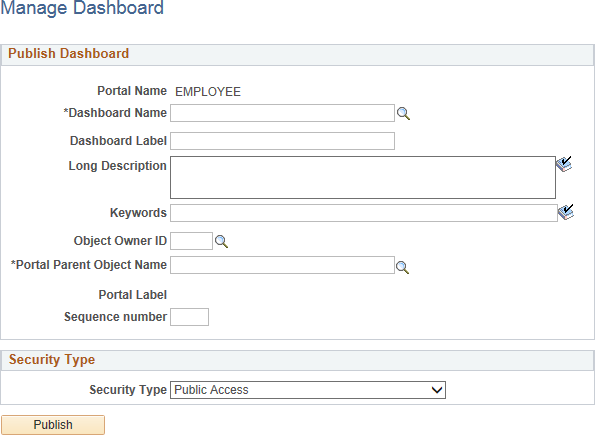

This example illustrates the fields and controls on the Manage Dashboard page. You can find definitions for the fields and controls later on this page.

 Manage Dashboard page

Publish Dashboard

Field or Control

Description

Portal Name

Displays the name of the current portal.

Dashboard Name

Select an existing dashboard definition from the OBIEE server.

Dashboard Label

Enter a label for this dashboard definition.

Long Description

Enter a description that appears as the tool tip text.

Keywords

Enter a keyword or keyword phrase to be stored as a content reference attribute.

Note: Two content reference attributes are created: KEYWORD (to store the keywords in the base language) and KEYWORD_LNG (to store the keywords in the current session language).

See Defining Content References for more information on content reference attributes.

Object Owner ID

Select the organization that owns the object.

Portal Parent Object Name

Select the portal registry folder in which you want to place the dashboard definition. Click the look up button to access the Select the Dashboard Link Parent Folder page.

Portal Label

Displays the label for the selected folder.

Sequence number

Enter a number to specify the order of the dashboard link within the parent folder.

Publish

Click the Publish button to save the OBIEE dashboard definition.

Security Type

Use the fields in the Security group box to specify whether access to the dashboard is restricted by permission list and role or unrestricted and available to all users.

Field or Control

Description

Security Type

Select from these values:

  • Public Access: Select to allow all users to view and access the dashboard.

  • Select Security Access: Select to specify PeopleTools Security access, which is based on permission lists and roles. When you select this option, the Selected Security grid appears.

Selected Security

Insert rows into the Selected Security grid to specify the permission lists and roles that provide access to the dashboard. You can combine permission lists and roles by inserting multiple rows in the grid.

Field or Control

Description

Authorization Type

For each row, select from these values:

  • Permission List: Select to secure the dashboard by permission list.

  • Role: Select to secure the dashboard by role.

Authorization Name

Specify the permission list or role name that provides access to the dashboard. Click the look up button to see a list of available names.
