Appendix: Using Common Functions That Reference a Password Data Store

This chapter provides overviews of the common functions that reference a password data store and the interactive flow for a sign on password data store. This chapter also provides details of the common functions.

Note. This chapter is intended for use by programmers.

Understanding Common Functions that Reference a Password Data Store

The common functions discussed in this chapter can be combined to reference a password database store. These functions can help achieve a sign on point between the portal and other target system software.

For each target system (email, web-based, and so forth), the user ID and password are stored and usually encrypted. When attempting to access information through PeopleSoft Enterprise Portal features that need to retrieve information from these target systems, such as the Email pagelet, the PeopleSoft Enterprise Portal performs the connection to the system using the user credentials stored in the password data store.

Note. This is a one-way integration. No data is written to the target system, such as Microsoft Exchange. A login is performed and data is retrieved, but user credentials or data is never updated in the target system.

The PeopleSoft Enterprise Portal uses these functions for third-party email and calendar integration:

• InsertUpdateUsrNamePsswd.

  Used for inserting and updating.

• GetUsrNamePsswd.

  Returns the user name and password that are associated with a Uniform Resource Locator (URL) identifier and a portal user ID.

• DeleteUsrNamePsswd.

  Used for deleting.

For example, when accessing the Email pagelet, the Get function is called. It retrieves the user credentials from the data store, which can then be passed to the target system. The Insert/Update is used when the user sets up the pagelet for the first time, or subsequently updates his user ID or password. The Delete is used when the user deletes these stored credentials from the password data store.

See Also

Setting Up Third-Party Email and Calendar

Understanding the Interactive Flow for a Sign On Password Data Store

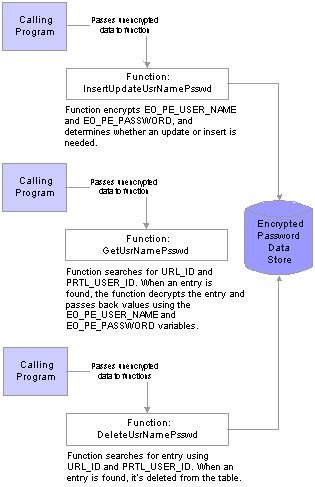

The following diagram illustrates a way in which the InsertUpdateUsrNamePsswd, GetUsrNamePsswd, and DeleteUsrNamePsswd common functions could be used.

Interactive flow for a sign on password data store

Common Functions

This section discusses the common functions used to reference a password data store.

InsertUpdateUsrNamePsswd

Syntax

InsertUpdateUsrNamePsswd(URL_ID, EO_PE_USER_NAME, EO_PE_PASSWORD)

Description

InsertUpdateUsrNamePsswd takes the URL identifier (URL_ID) and the portal user ID (PRTL_USER_ID) and searches the table for an entry that already exists. If an entry exists, an update is performed; if no entry exists, a new entry is inserted.

The values for the user ID (EO_PE_USER_NAME) and password (EO_PE_PASSWORD) that are associated with the URL_ID and PRTL_USER_ID are encrypted when placed in the table.

The following is the technical design in PeopleCode:

Function InsertUpdateUsrNamePsswd(&URL_ID, &EO_PE_USER_NAME, &EO_PE_PASSWORD)

   &found = "";

   &PRTL_USER_ID = %UserId;

   &EO_PE_USER_NAME = Encrypt("", &EO_PE_USER_NAME);
      &EO_PE_PASSWORD = Encrypt("", &EO_PE_PASSWORD);

   SQLExec("select EO_PE_USER_NAME from PS_EO_PE_SS_LOGIN
   where URL_ID = :1 and PRTL_USER_ID = :2", &URL_ID, &PRTL_USER_ID,
   &found);


   If &found = "" Then
   SQLExec("INSERT INTO PS_EO_PE_SS_LOGIN( URL_ID, PRTL_USER_ID,
   EO_PE_USER_NAME, EO_PE_PASSWORD) values(:1, :2, :3, :4)",
   &URL_ID, &PRTL_USER_ID, &EO_PE_USER_NAME, &EO_PE_PASSWORD);
   Else
   SQLExec("UPDATE PS_EO_PE_SS_LOGIN SET EO_PE_USER_NAME = :1,
   EO_PE_PASSWORD = :2 WHERE URL_ID = :3 AND PRTL_USER_ID = :4",
   &EO_PE_USER_NAME, &EO_PE_PASSWORD, &URL_ID, &PRTL_USER_ID);
   End-If;

End-Function;

Parameters

Returns

The function returns no value.

Example

In this example, the function is used with hardcoded values. In most cases, variables are used as parameters.

InsertUpdateUsrNamePsswd("Yahoo_Mail_Account", "Name", "Password");

Name and password are encrypted and placed in the table. The table appears as follows:

GetUsrNamePsswd

Syntax

GetUsrNamePsswd(URL_ID, EO_PE_USER_NAME, EO_PE_PASSWORD);

Description

GetUsrNamePsswd takes the URL_ID and PRTL_USER_ID and searches the table for the associated EO_PE_USER_ID and EO_PE_PASSWORD. GetUsrNamePsswd decrypts EO_PE_USER_ID and EO_PE_PASSWORD. The decrypted user ID and password are passed back.

The following is the technical design in PeopleCode:

Function GetUsrNamePsswd(&URL_ID, &EO_PE_USER_NAME, &EO_PE_PASSWORD)

   &PRTL_USER_ID = %UserId;

   SQLExec("select EO_PE_USER_NAME, EO_PE_PASSWORD from
   PS_EO_PE_SS_LOGIN where URL_ID = :1, and PRTL_USER_ID = :2",
   &URL_ID, &PRTL_USER_ID, &EO_PE_USER_NAME, &EO_PE_PASSWORD);

   &EO_PE_USER_NAME = Decrypt("", &EO_PE_USER_NAME);
   &EO_PE_PASSWORD = Decrypt("", &EO_PE_PASSWORD);

End-Function;

Parameters

Returns

The function returns no value.

Example

The value for URL_ID is hardcoded. Usually, this parameter is a variable.

&UserName = "";

&Password = "";

GetUsrNamePsswd("Yahoo_Mail_Account", UserName, Password);

DeleteUsrNamePsswd

Syntax

DeleteUsrNamePsswd(&URL_ID);

Description

DeleteUsrNamePsswd deletes entries in the table by searching with the URL_ID and the PRTL_USER_ID and removing those items when it finds a match.

The following is the technical design in PeopleCode:

Function DeleteUsrNamePsswd(&URL_ID)

   &PRTL_USER_ID = %UserId;


   SQLExec("Delete from PS_EO_PE_SS_LOGIN Where URL_ID = :1 and
   PRTL_USER_ID = :2", &URL_ID, &PRTL_USER_ID);

End-Function;

Parameters

Returns

The function returns no value.

Example

In this example, the value for URL_ID is hardcoded. Usually, this parameter is a variable.

DeleteUsrNamePsswd("Yahoo_Mail_Account");
