Getting Started with PeopleSoft Enterprise CRM Order Capture Applications

This chapter provides an overview of PeopleSoft Enterprise Order Capture applications and discusses:

• PeopleSoft Order Capture business processes.

• PeopleSoft Order Capture process flow.

• PeopleSoft Order Capture integrations.

• PeopleSoft Order Capture, PeopleSoft Order Capture Self Service, and PeopleSoft Mobile Order Capture implementation.

Note. Although PeopleSoft Order Capture and PeopleSoft Order Capture Self Service are separately licensed applications, most references to business processes and implementation steps in this chapter apply equally to both applications.

PeopleSoft Enterprise Order Capture Applications Overview

PeopleSoft Customer Relationship Management (PeopleSoft CRM) offers several distinct applications each of which contributes to the interactive selling experience:

• PeopleSoft Enterprise Order Capture.

  This internally facing application is a robust customer relationship management (CRM) order management tool that enables customer sales representatives (CSRs) or sales representatives to manage orders and quotes.

• PeopleSoft Enterprise Order Capture Self Service.

  This externally facing application enables web users—such as brokers, business customers, and consumer customers—to easily create and manage their own orders and quotes.

• PeopleSoft Enterprise Mobile Order Capture.

  This application enables PeopleSoft Order Capture users to synchronize orders and quotes to and from their disconnected mobile devices. It enables sales representatives to use disconnected laptops to enter orders and quotes, track orders and quotes, and view customer and product information. Mobile users can easily synchronize orders to and from the main PeopleSoft CRM server, and convert leads or opportunities from PeopleSoft Mobile Sales to a quote or order.

PeopleSoft Order Capture Applications Business Processes

This section discusses the business processes that you can perform using PeopleSoft Order Capture applications.

See PeopleSoft Enterprise CRM 8.9 Mobile Applications PeopleBook.

Business Processes for Order Capture Applications

PeopleSoft Order Capture applications utilize:

• The CRM customer data model (CDM, also referred to as the business object relationship model [BORM]).

  The CDM (or BORM) is a powerful tool with which you can define the structure of your customer base and the relationships between various business entities such as companies, sites, partners, resellers, or consumer families. The BORM enables businesses with complex business models to define this data structure within their CRM systems, which controls system behavior, workflow, and business rules according to that definition.

  See PeopleSoft Enterprise CRM 8.9 Business Object Management PeopleBook.

• The CRM product data model.

  This data model enables the definition and creation of the products and services the PeopleSoft software will support. You have numerous options in doing so such as, dynamic packages, nested packages, product relationships, and complex configurations.

  See Setting Up Products.

• PeopleSoft Enterprise Pricer.

  This pricing tool uses the latest PeopleTools technologies to deliver a robust, high-performance engine. It integrates seamlessly with Order Capture applications to apply complex pricing structures and scenarios. PeopleSoft Enterprise Pricer has an intuitive user interface that is geared to use by your marketing managers.

  See PeopleSoft 8.9 Enterprise Pricer for CRM Preface.

• CRM catalog.

  CRM catalog functionality is available to Order Capture applications. With it, you can create region-specific catalogs, display template configurations, apply permission-filtering, and enable product comparisons. CRM catalogs integrate fully with PeopleSoft Order Capture, Order Capture Self Service, and PeopleSoft Advisor for the purpose of product, service, or solution recommendations. Additionally, Catalog Search employs the Verity search engine.

  See Creating Catalogs.

PeopleSoft Order Capture

PeopleSoft Order Capture offers these features:

• Order and quote management.

  PeopleSoft Order Capture delivers order and quote management functionality for both tangible and nontangible products, such as services. (For example, a monthly service agreement for cable television service is a service product.)

• PeopleSoft Order Capture workbenches.

  PeopleSoft Order Capture workbenches are unique to the enterprise, and they perform three main functions. First, they are a central navigation point from which you can set up PeopleSoft Order Capture and Order Capture Self Service, after you have defined your business units. The system consolidates specific setup tasks into one of three workbenches: Setup Workbench, Capture Type Workbench, and Integration Workbench. These workbenches all appear in the Set Up CRM, Product Related, Order Capture menu.

  Second, you can configure the 'look and feel' of the Order Capture runtime pages by defining and then selecting specific display templates.

  Third, you can create application class sets and plug the logic of those application classes into a workbench feature to create new events for your order capture business process.

  Note. The Customer Connection document “Understanding Application Classes in PeopleSoft Order Capture and PeopleSoft Order Capture Self Service” explains how to harness the power of application classes.

• Functional Area Navigation (FAN) pages, personalizations, and hotkeys.

  CSRs can begin their interactive selling activities from a FAN page that provides one-click access to the main features of PeopleSoft Order Capture. Customer Service administrators can personalize the look and feel of the order entry form for CSRs and CSRs can use hotkeys for rapid data entry.

• Integration with fulfillment.

  PeopleSoft Order Capture provides integration with both PeopleSoft and third party fulfillment systems or supply chain management products. For example, there is a tight integration with PeopleSoft Supply Chain Management (PeopleSoft SCM) so that order fulfillment and detailed maintenance activity is possible.

  Note. Enterprise integration points (EIPs) support the sending and receiving of orders, quotes, product availability, and order status information.

• Order capture business projects.

  Configurable business projects power order fulfillment. Business projects enable you to configure the phases, tasks, and events that occur once an orderis submitted.

• Interactive Reports.

  PeopleSoft Order Capture delivers instant, detailed business analytics information for revenue and metrics. User roles control access to enterprise-wide report information.

• Quick Create.

  PeopleSoft Order Capture enables you to create customers, consumers, and contacts while you are in the midst of a transaction without having to navigate to the standard setup components to define customer information.

• Correspondence management.

  PeopleSoft Order Capture can establish automatic correspondences using email or print for order or quote maintenance, or submission activity. Also, CSRs can generate correspondences manually by clicking the Send Correspondence button on the Entry Form page.

• Support for taxes, including value-added tax (VAT).

  PeopleSoft Order Capture integrates with Taxware, Vertex, and WorldTax software applications to calculate and display tax information directly on order forms.

• Integration to Agreements.

• Integration with PeopleSoft Proposal Management.

• Bulk order creation and maintenance.

• Credit card integration.

• Freight integration with ConnectShip.

PeopleSoft Order Capture Self Service

In addition to most PeopleSoft Order Capture features, Order Capture Self Service delivers:

• Support for self-service registration and profile and address maintenance.

• A Contact Us feature that includes real-time chat with a CSR.

• Security roles and privileges that control what a self-service user sees.

• Quick entry, to enable the rapid creation of orders.

• Order tracking functionality.

• Other standard self-service features, such as Checkout and Shopping Cart.

PeopleSoft Mobile Order Capture

PeopleSoft Mobile Order Capture enables implementers and remote sales representatives to use laptops to:

• (Implementers only) Configure synchronization rules and options, when in a connected environment.

• Search for products using a variety of criteria, such as product ID, description, or category.

• View product details, including images, notes, and attachments.

• View detailed product list price information.

• Search, view, and add products to quotes and orders.

• Search for quotes and orders.

• View quote and order line details.

• Add or view notes and attachments for products and orders.

• Submit orders and quotes.

• View holds.

• Convert sales leads or opportunities to quotes or orders.

See PeopleSoft Enterprise CRM 8.9 Mobile Applications PeopleBook.

PeopleSoft Order Capture Process Flow

These diagrams illustrate the primary PeopleSoft Order Capture business processes. The diagrams identifies:

1. High-level implementation and setup tasks for which a PeopleSoft Order Capture implementer is responsible.

2. Main business processes available for use by a PeopleSoft Order Capture CSR:

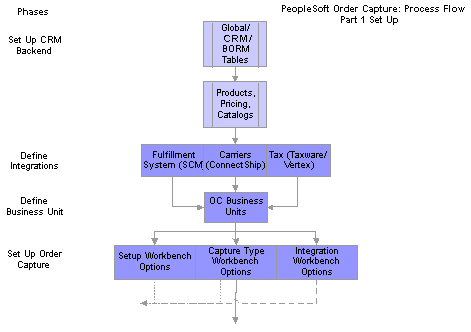

PeopleSoft Order Capture process flow (setup)

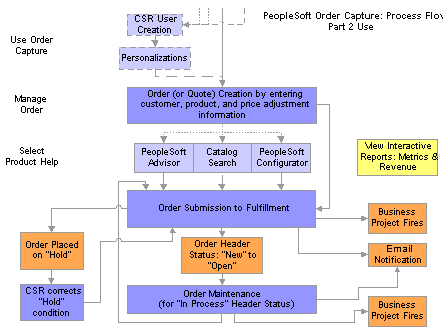

PeopleSoft Order Capture process flow (use)

See Also

Setting Up PeopleSoft Order Capture

Managing Orders and Quotes

PeopleSoft Order Capture Integrations

PeopleSoft Order Capture integrates with most PeopleSoft CRM applications. Generally, this occurs in the form of other CRM applications channeling CSRs, call center agents, marketing managers, or sales representatives to the entry form where they can create an order or quote.

PeopleSoft CRM Applications

PeopleSoft Order Capture integrates directly with these PeopleSoft CRM features or applications:

• 360-Degree View.

• PeopleSoft Advanced Configurator.

  This integration enables complex configuration of products directly from the order line.

• PeopleSoft FieldService.

  PeopleSoft Order Capture provides support for both service order generation and installed products.

• PeopleSoft Marketing.

  PeopleSoft Order Capture displays campaigns that are targeted to your customers.

• PeopleSoft Real-Time Advisor.

  This integration enables CSRs to launch a PeopleSoft Advisor dialog and, using a question and answer session, match a buyer with a recommendation for a product, service, or solution.

• PeopleSoft Sales.

  This integration supports the creation of a quote or order from a sales lead or opportunity.

• PeopleSoft Support.

  This integration enables call center agents to generate a sale from a case.

• PeopleSoft Telemarketing.

  This integration enables telemarketers to quickly convert a phone call opportunity into a sale.

External Applications

PeopleSoft Order Capture and Order Capture Self Service use EIPs to connect to fulfillment systems and other third-party applications. PeopleSoft CRM EIPs connect you to:

• PeopleSoft SCM or similar systems.

  This integration enables order fulfillment.

• Credit Card EIP.

  This enables integration with third-party credit card authorization and payment vendors directly from PeopleSoft Order Capture and Order Capture Self Service.

• Carriers and tax calculation systems.

  Integration with ConnectShip (for freight) and Taxware or Vertex (for taxes) enables order capture applications to calculate freight, sales tax, and VAT directly from an order.

  This table lists cross-references to third-party information:

  Third-Party Application	System Type	Company URL
  ConnectShip	Shipping cost calculation	http://connectship.com
  Taxware	Sales and use tax calculation	http://www.taxware.com
  Taxware	WorldTax	http://www.taxware.com/products/worldtax.html
  Vertex	Sales and use tax calculation	http://www.vertexinc.com

Note. Supplemental information about how to set up third-party application integrations is located on the PeopleSoft Customer Connection website.

PeopleSoft Order Capture Applications Implementation

PeopleSoft Setup Manager enables you to generate a list of setup tasks for your organization based on the features that you are implementing. The setup tasks include the components that you must set up, listed in the order in which you must enter data into the component tables, and links to the corresponding PeopleBook documentation.

PeopleSoft Order Capture applications also provide component interfaces to help you load data from your existing system into order capture tables. Use the Excel to Component Interface utility with the component interfaces to populate the tables.

This table lists all of the order capture components that have component interfaces:

Other Sources of Information

In the planning phase of your implementation, take advantage of all PeopleSoft sources of information, including the installation guides, table-loading sequences, data models, and business process maps. A complete list of these resources appears in the preface in the PeopleSoft Enterprise CRM 8.9 Application Fundamentals PeopleBook, with information about where to find the most current version of each.

See Also

PeopleSoft Enterprise Setup Manager for Customer Relationship Management 8.9
